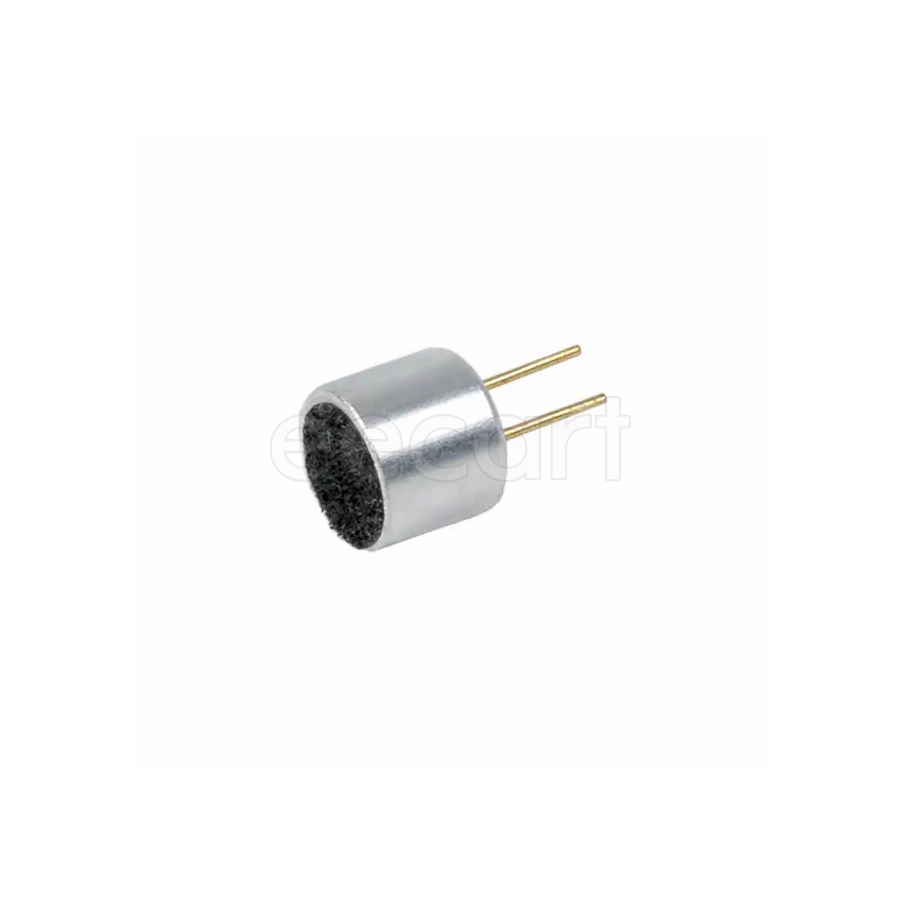

CMC-5044PF-A
Manufacturer:
Same Sky
Mfr.Part #:
CMC-5044PF-A
Datasheet:
Description:
Microphones Through Hole Circular, Round 100 Hz -44 dB
| Parameter | Value |
|---|---|
| Length | 6 mm |
| Width | 6 mm |
| Termination | Solder |
| Height | 5 mm |
| Packaging | Bulk |
| Voltage Rating | 10 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Impedance | 2.2 kΩ |
| Frequency | 100 Hz |
| Operating Supply Voltage | 2 V |
| Output Type | Analog |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Operating Supply Current | 500 µA |
| Direction(Counting Sequence) | Omnidirectional |
| Max Frequency | 20 kHz |
| Shape | Circular, Round |
| Directional Properties | Omnidirectional |
| Current Rating | 500 µA |
| Max Supply Voltage | 10 V |
| Min Supply Voltage | 2 V |
| Depth | 5 mm |
| Signal to Noise Ratio (SNR) | 56 dB |
| Sensitivity | -44 dB |
| Diameter | 6 mm |
Stock: 6679
Distributors
pcbx
pcbxUnit Price$0.66352
Ext.Price$0.66352
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.66352 | $0.66352 |
| 10 | $0.51682 | $5.16820 |
| 25 | $0.46998 | $11.74950 |
| 50 | $0.43818 | $21.90900 |
| 100 | $0.40853 | $40.85300 |
| 300 | $0.38089 | $114.26700 |
| 500 | $0.35512 | $177.56000 |
| 1000 | $0.33109 | $331.09000 |
| 3000 | $0.30869 | $926.07000 |
| 5000 | $0.28780 | $1439.00000 |
